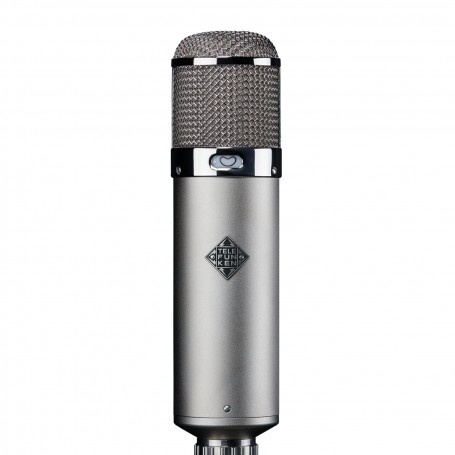

Telefunken U-47
For more than 70 years the U47 has been a staple of every professional, top tier recording studio. With an authoritative mid-range and extended low-end response, the U47 excels at everything from vocals and electric guitar, to orchestral and chamber recordings. The TELEFUNKEN Elektroakustik recreation of the U47 large diaphragm tube microphone is true to the original design, even down to the historically accurate BV8 output transformer and M7 capsule, which provides the same rich and vibrant tone that has made the original U47 into a legend.
Descrizione
For more than 70 years the U47 has been a staple of every professional, top tier recording studio. With an authoritative mid-range and extended low-end response, the U47 excels at everything from vocals and electric guitar, to orchestral and chamber recordings. The TELEFUNKEN Elektroakustik recreation of the U47 large diaphragm tube microphone is true to the original design, even down to the historically accurate BV8 output transformer and M7 capsule, which provides the same rich and vibrant tone that has made the original U47 into a legend.
TECHNICAL SPECIFICATIONS
Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik M7 – Center Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik VF14K
Transformer: TELEFUNKEN Elektroakustik BV8
Sensitivity: 24.5 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 127 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9 dBA
Dimensions: 240 mm L x 60 mm Dia
Weight: 620 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
