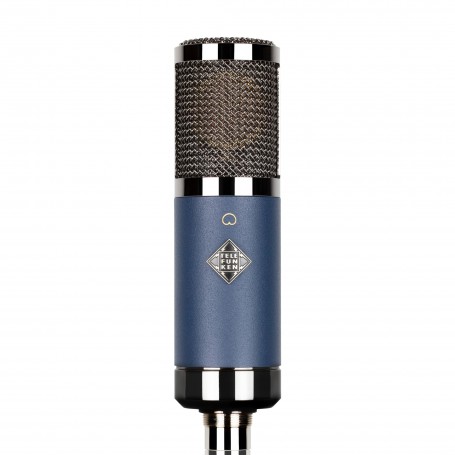

Telefunken TF11 FET
The TF11 is a unique design and a new take on the large diaphragm condenser microphone. Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the TF11 features a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling, and low self-noise. The compact, Cardioid-only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage. Countless sources including voice, drum overheads, and acoustic instruments shine when captured with this microphone. Hand-assembled in the USA, the TF11 features a CK12-style edge terminated capsule, premium through-hole components, and a custom UK-made OEP/Carnhill output transformer.
Descrizione
The TF11 is a unique design and a new take on the large diaphragm condenser microphone. Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the TF11 features a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling, and low self-noise. The compact, Cardioid-only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage. Countless sources including voice, drum overheads, and acoustic instruments shine when captured with this microphone. Hand-assembled in the USA, the TF11 features a CK12-style edge terminated capsule, premium through-hole components, and a custom UK-made OEP/Carnhill output transformer.
TECHNICAL SPECIFICATIONS
Type: FET Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: +48V Phantom Power
Capsule: TK51S – Edge Terminated Large Diaphragm, Single Membrane
Transformer: OEP/Carnhill T218
Sensitivity: 14 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.01%
Output Impedance: 110 Ω
Maximum SPL (for 1% THD): > 135 dB
S/N Ratio: 90 dBA
Self Noise (Amplifier): 4 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
