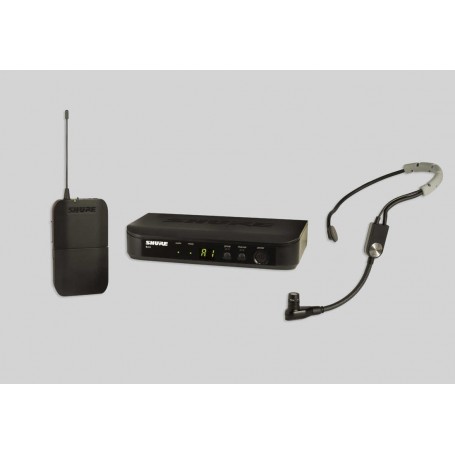

SHURE BLX 14+SM35
Radiomicrofono Shure Blx14+ microfono SM 35
Descrizione
The new SM35 headset condenser microphone from Shure gives multi-instrumentalists the freedom to express themselves without having to sacrifice the sound quality found in traditional microphones. A tight, unidirectional (cardioid) pickup pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed for superior performance on stage. Standard TA4F (TQG) connectivity seamlessly integrates into any Shure wireless bodypack system, and its availability in a number of bundled systems makes it appropriate for any stage, ranging from small clubs to large installations and arena tours. The SM35-XLR (optional) includes an inline RPM626 preamp for use in standard wired (XLR) applications.
Features
-
One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
-
Up to 12 compatible systems per frequency band (region-dependent)
-
XLR and ¼” output connectors
-
Microprocessor-controlled internal antenna diversity
-
Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)
Features
- Up to 14 hours of continuous use with 2 AA batteries (included)
- Up to 300 ft (100 m) transmission radius
- Quick and easy receiver frequency matching
- TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
- Toggle on/off switch
- Adjustable gain control of 26dB (+10 to -16dB)
- Lightweight, rugged construction
- Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω - Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load) - RF Sensitivity
-105 dBm for 12 dB SINAD, typical - Image Rejection
>50 dB, typical - Dimensions
40 mm X 188 mm X 103 mm (H x W x D) - Weight
241 g (8.5 oz.) - Housing
Molded ABS - Power Requirements
12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
